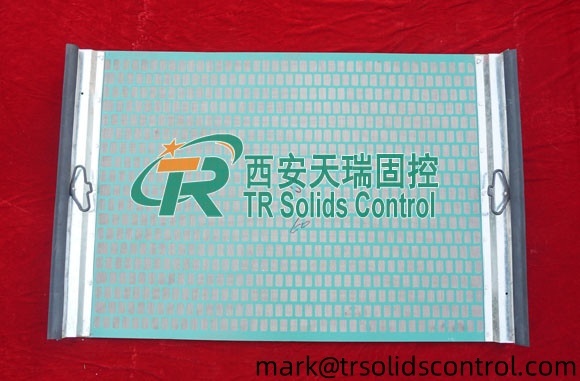

500 series Flat Shaker Screen
500 series flat Shaker Screen constructed with two or three 304 or 316 stainless steel wire cloth layers with a steel backing plate combined together. Because of different mesh size, and steel backing plate, on the condition of using intensity, to get the best and most effective filtering area.
The above of thin wire cloth with middle and the bottom of the thick wire cloth, combined with different thickness steel backing plate together, infinitely enhance the whole screen use intensity.
Because of different model and clients requirement, can choose different steel backing plate form, for example hexagonal, rectangular, square and so on, supporting the above different screen cloth, the above cloth is divided into independent small surfaces, prevent the part excessive expansion damaged, better extend the use lifetime.
Advantages of 500 series Flat Shaker Screen :
1. Wear-resisting
2. long service life,
3. Higher flow rate
4. Easy disassembly
5. Trapping (dreg) effect is good
6. Technical expertise
500 series Flat Shaker Screen Parameters
| Product name | Drilling waste management 500series flat Shale Shaker Screen for oil filtration |
| Wire mesh material | SS304 SS316 or customized as customers demands |
| Size | 1050*695mm |
| Weight | 6 kgs |
| Screen layers | 2 or 3 layers |
| Mesh count | 20-325mesh |
| Quality standard | compliant with API RP13C Standard |
| Remarks:Packaging Details:2 pieces one carton, 20 pcs one wooden case. Out size of the wooden case: 1250*780*1000mm |
Shale shaker screen used in solids control equipment are generally made of woven wire cloth, in many different sizes and shapes, with a perforated plate as frame. Our 500 Flat Shaker Screen cloth is designed to last longer, handle higher flow rates, resist blinding and remove fine solids. Improved screen life,Increased flow capacity,Lower overall rig screen cost,Available for all shakers.
We are an exporter of shaker screen.TR is a Steel frame screen manufacturer and china Steel frame screen supplier.Our factory approval the API,Drilling Shale Shakers and drilling shaker screen have the API certification.TR solids control is the designed,selling,production,service and delivery of Chinese drilling fluid shakers manufacturers.We will provide the high quality shaker screen and swaco mongoose shaker screen.
